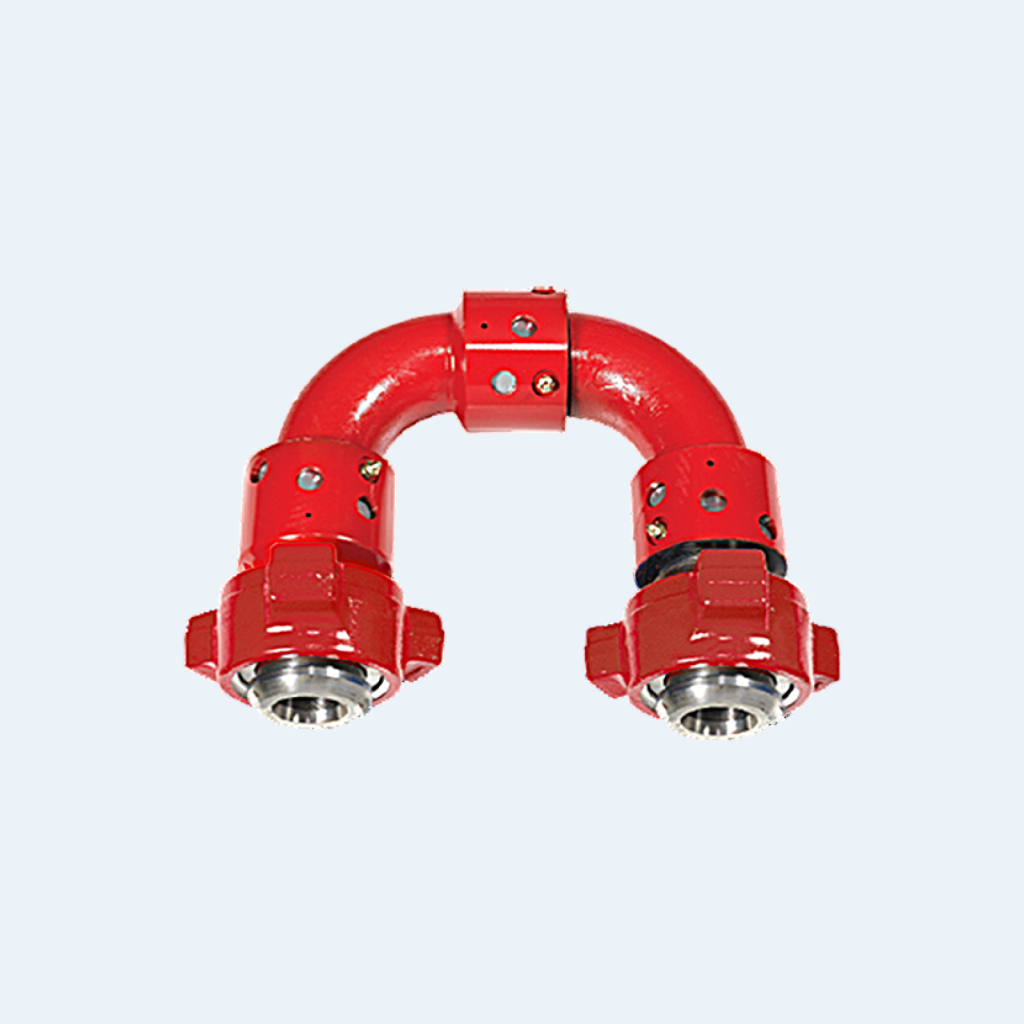

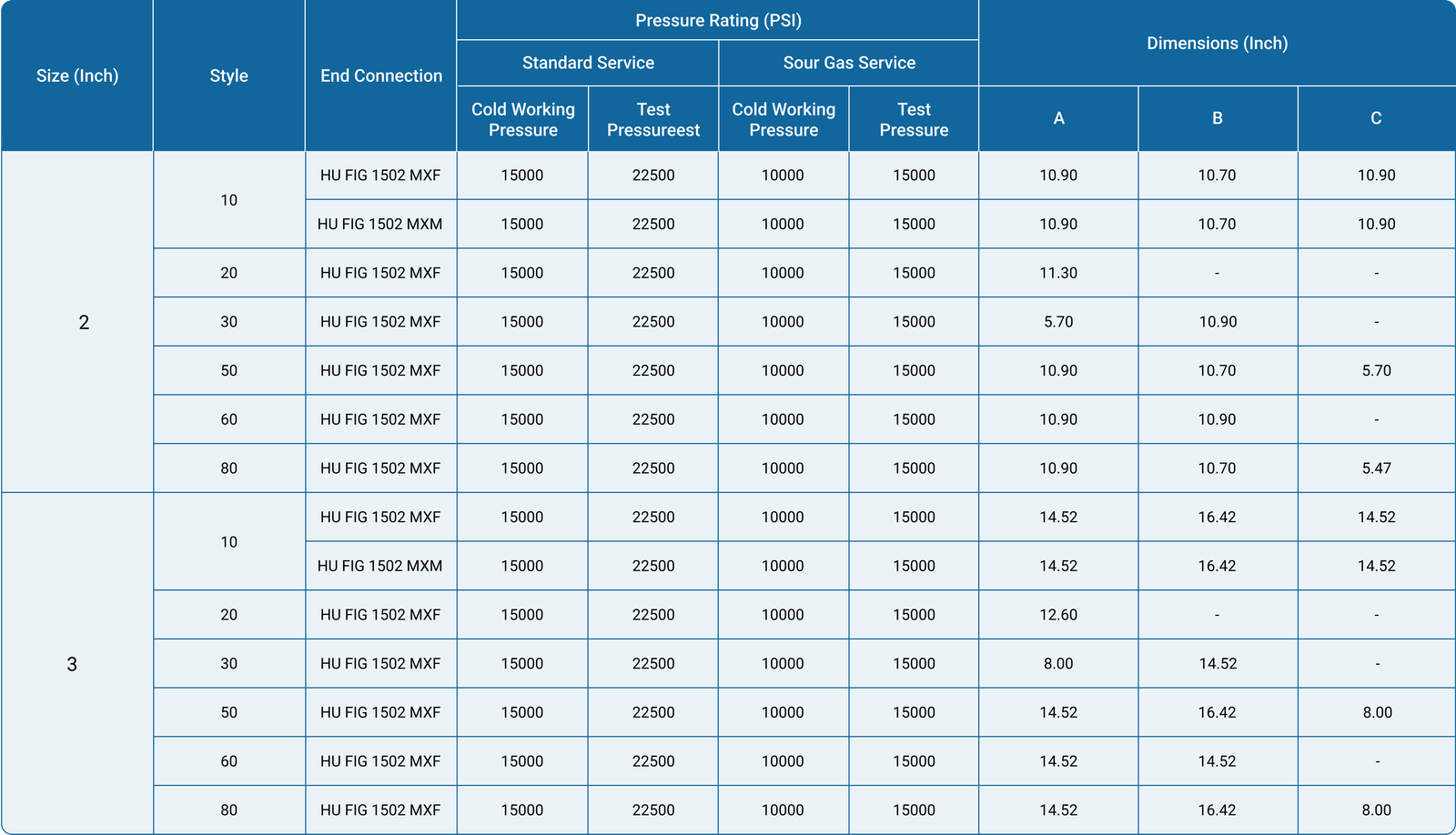

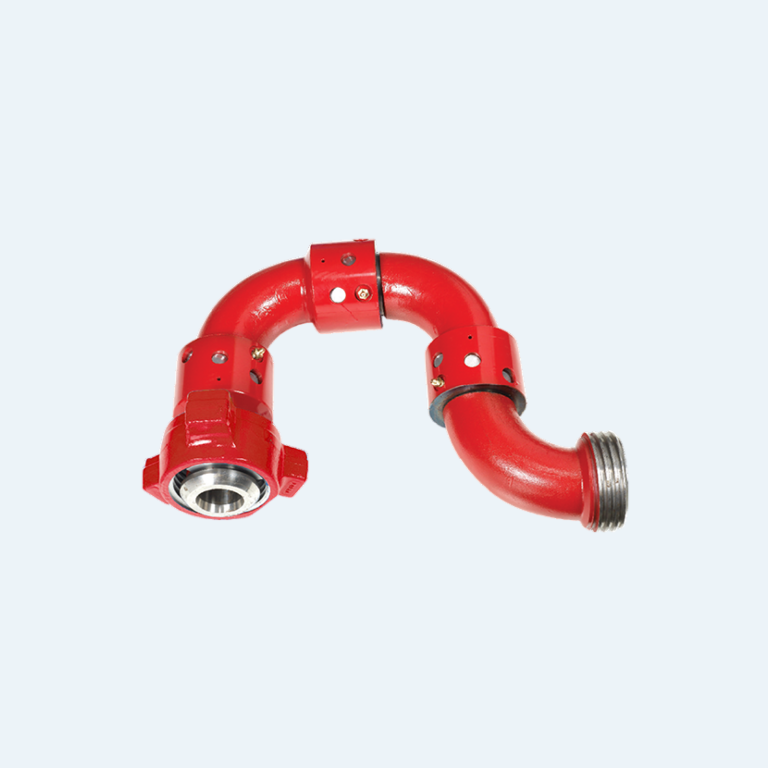

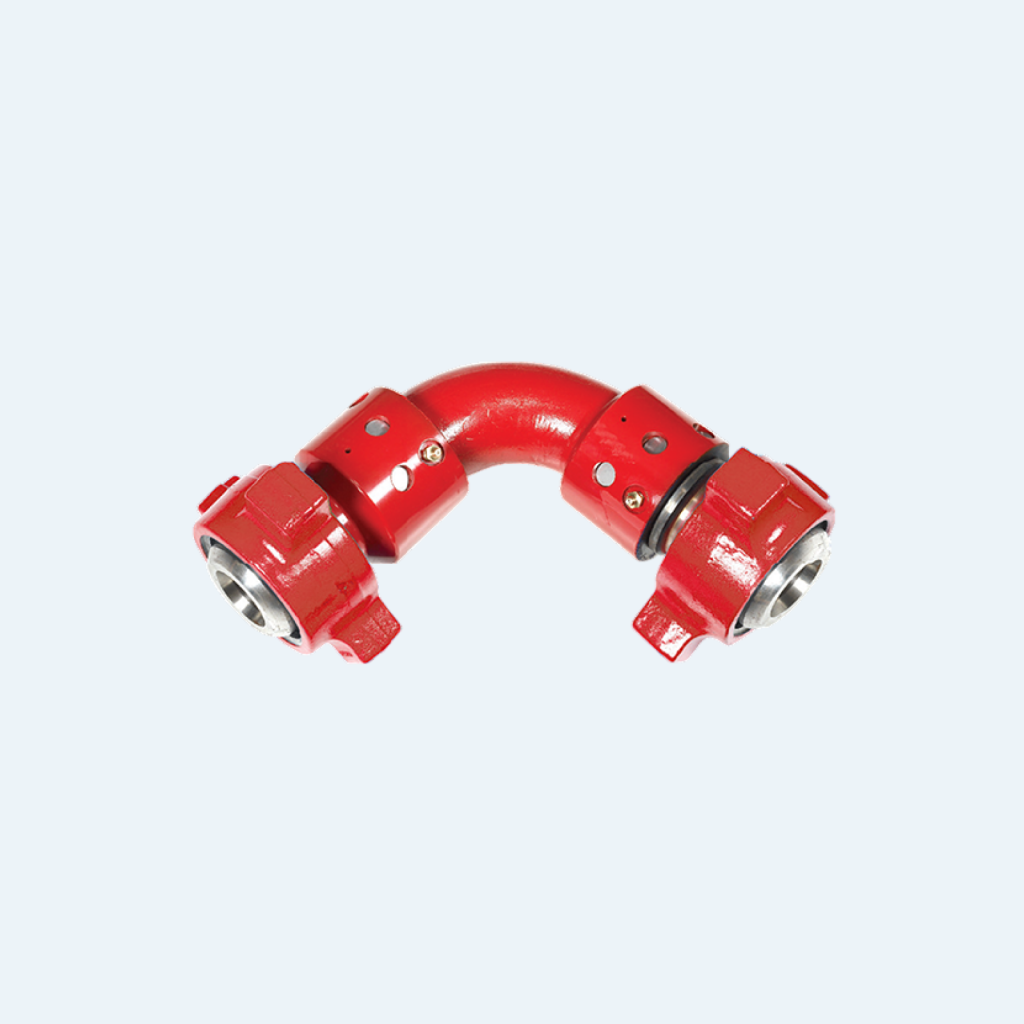

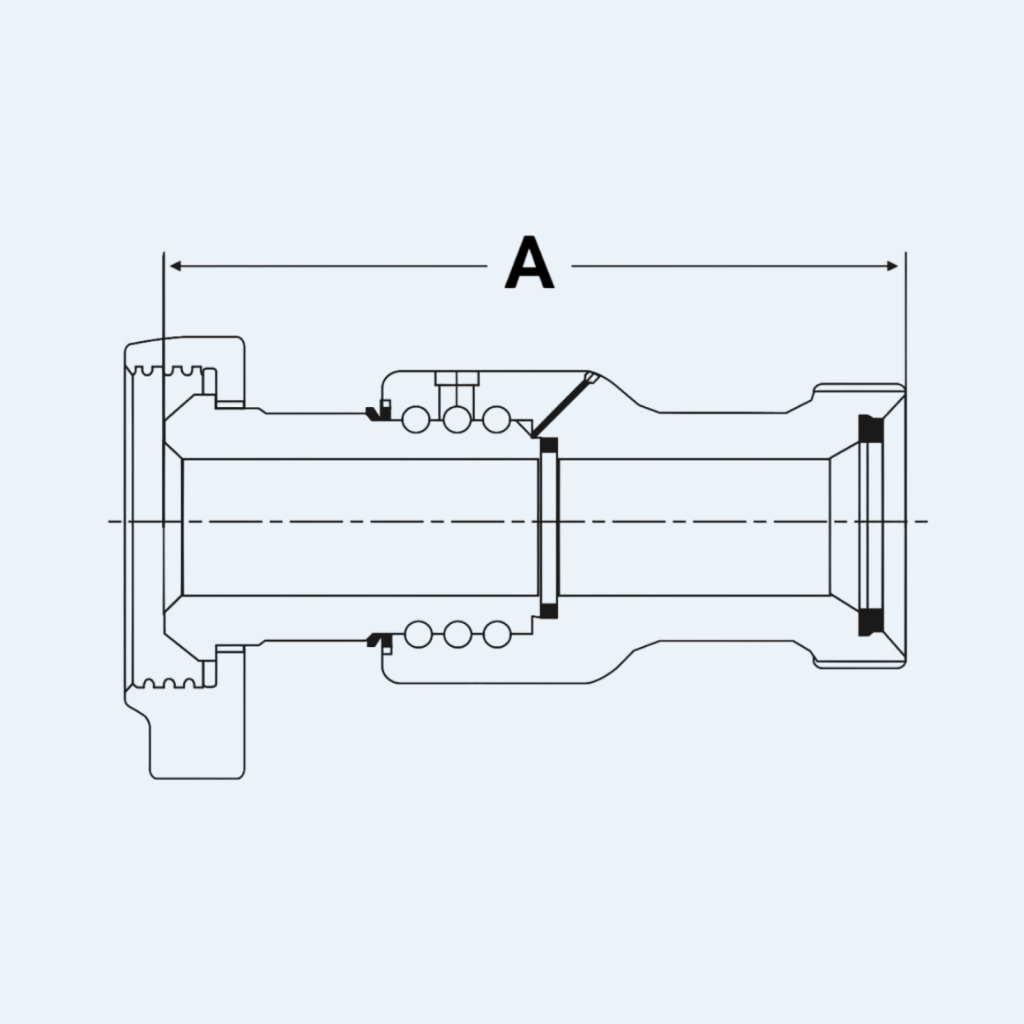

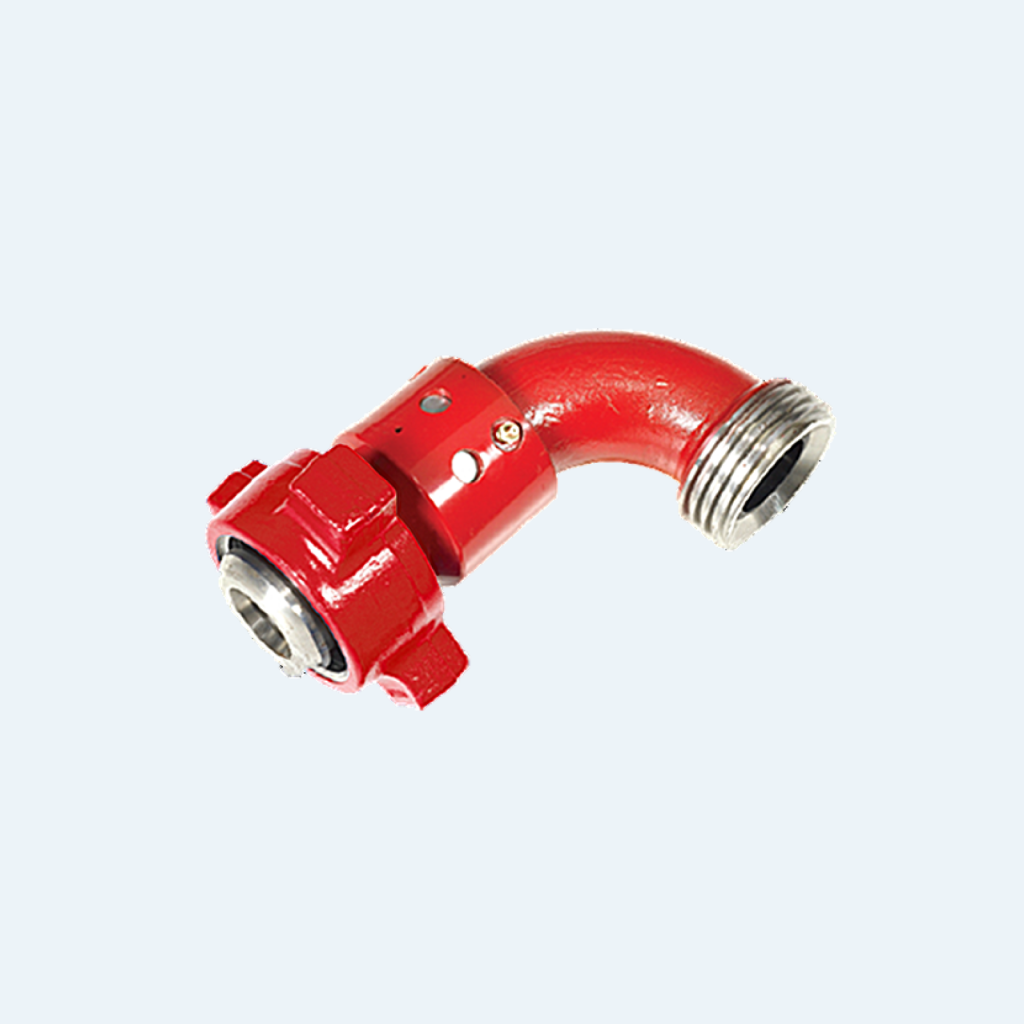

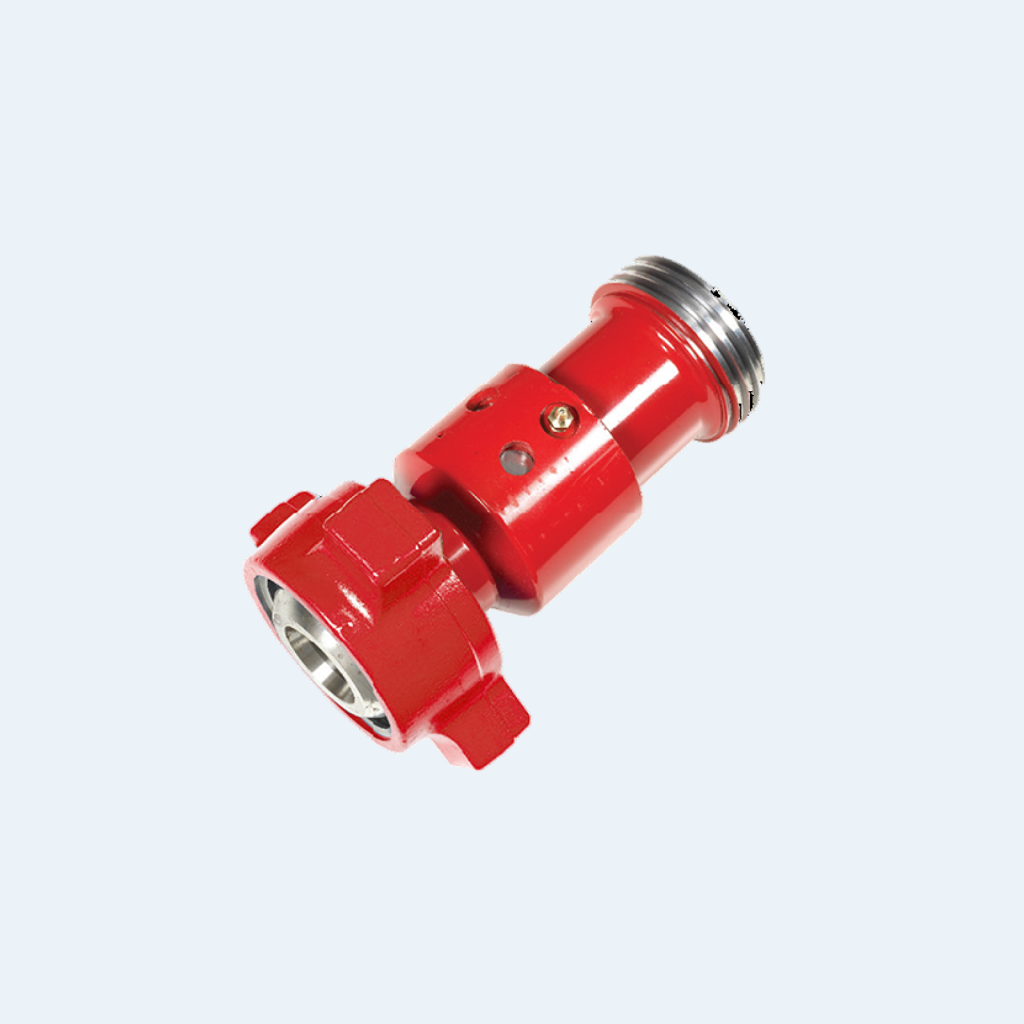

Our tri-race Swivel Joints are designed to withstand the demanding service conditions found in cementing, fracturing, acidizing, and well testing. They are available in two and three-inch sizes, with a test pressure of 22,500 PSI and a cold working pressure of 15,000 PSI. 1502 Hammer Union ends make makeup easy and quick.

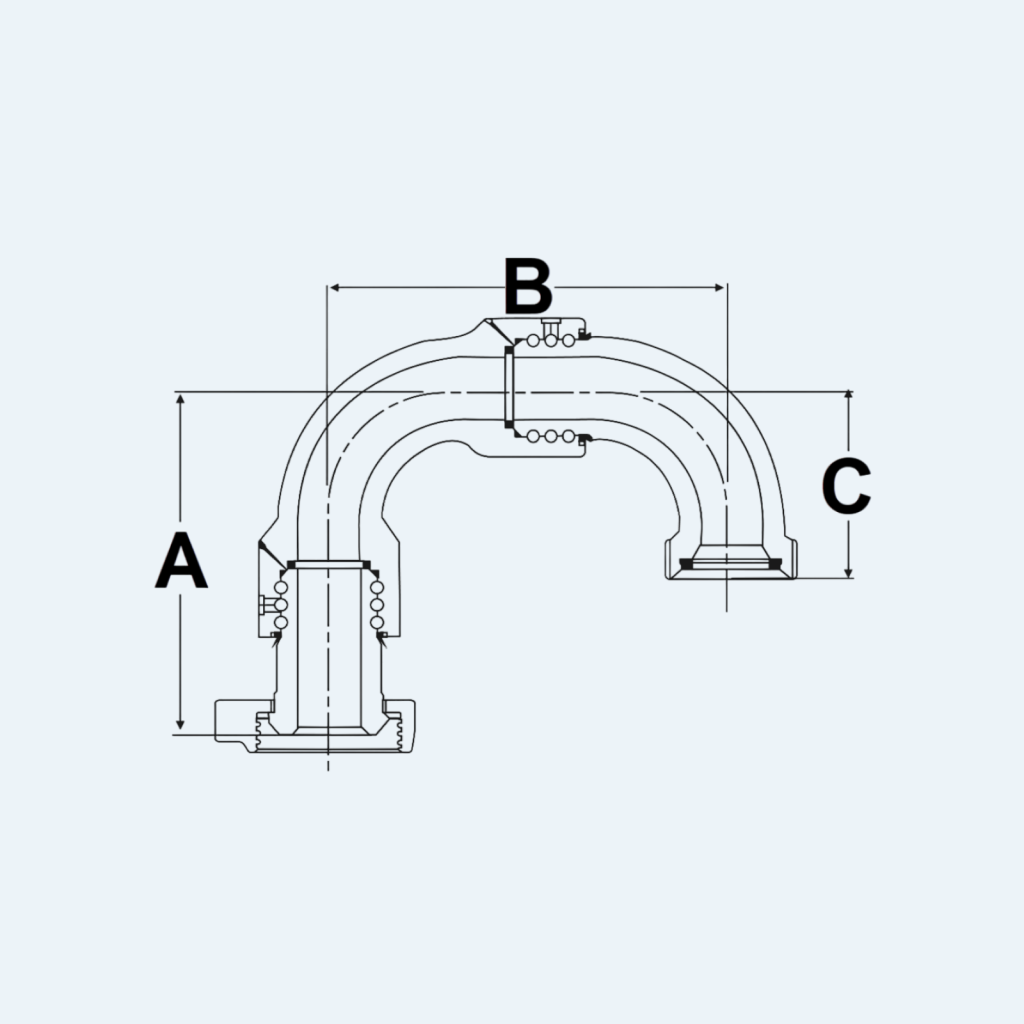

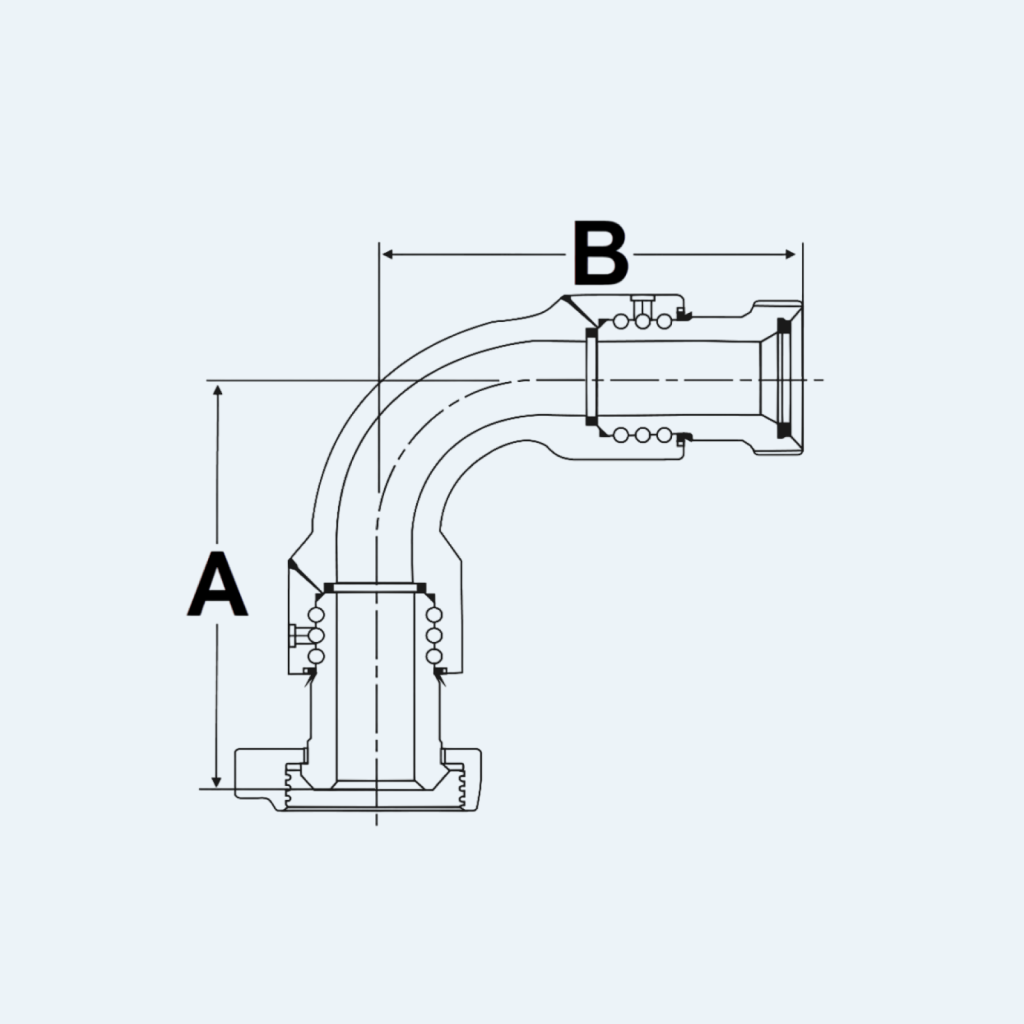

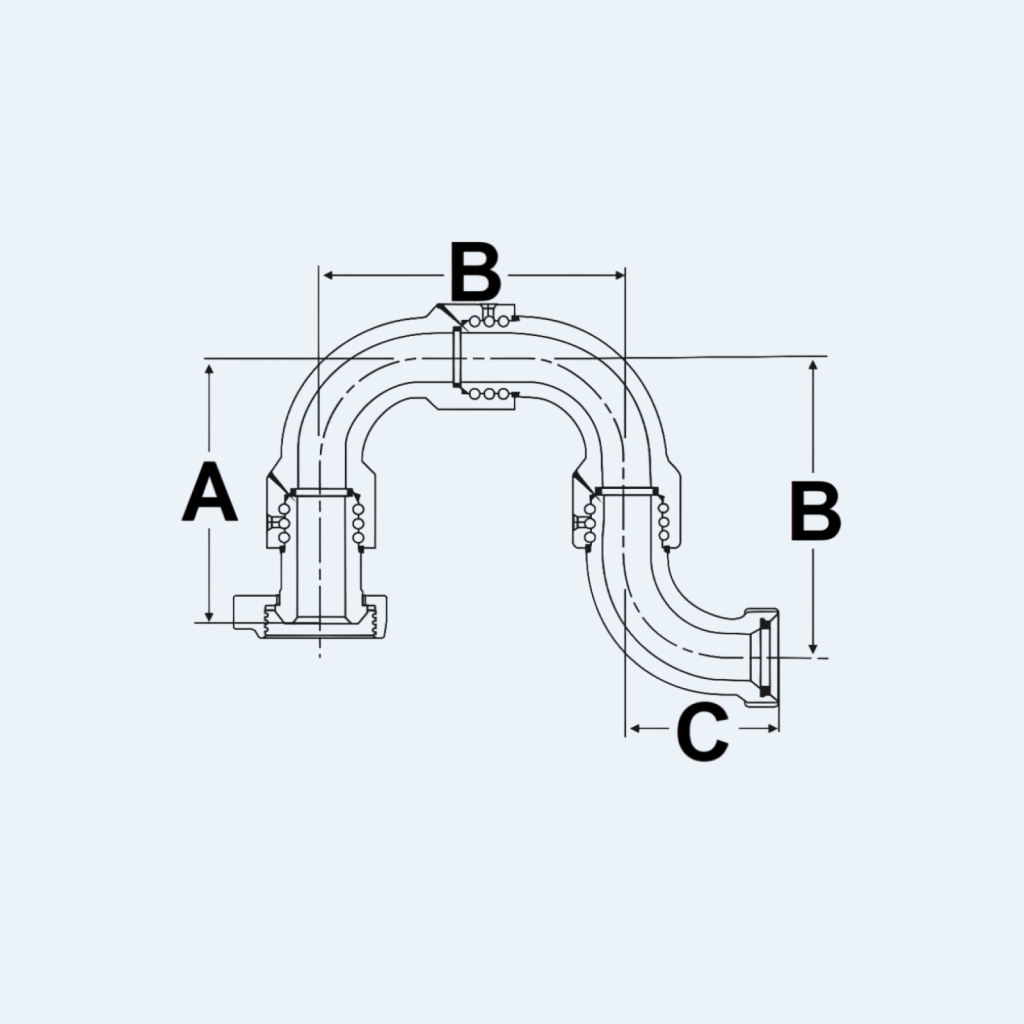

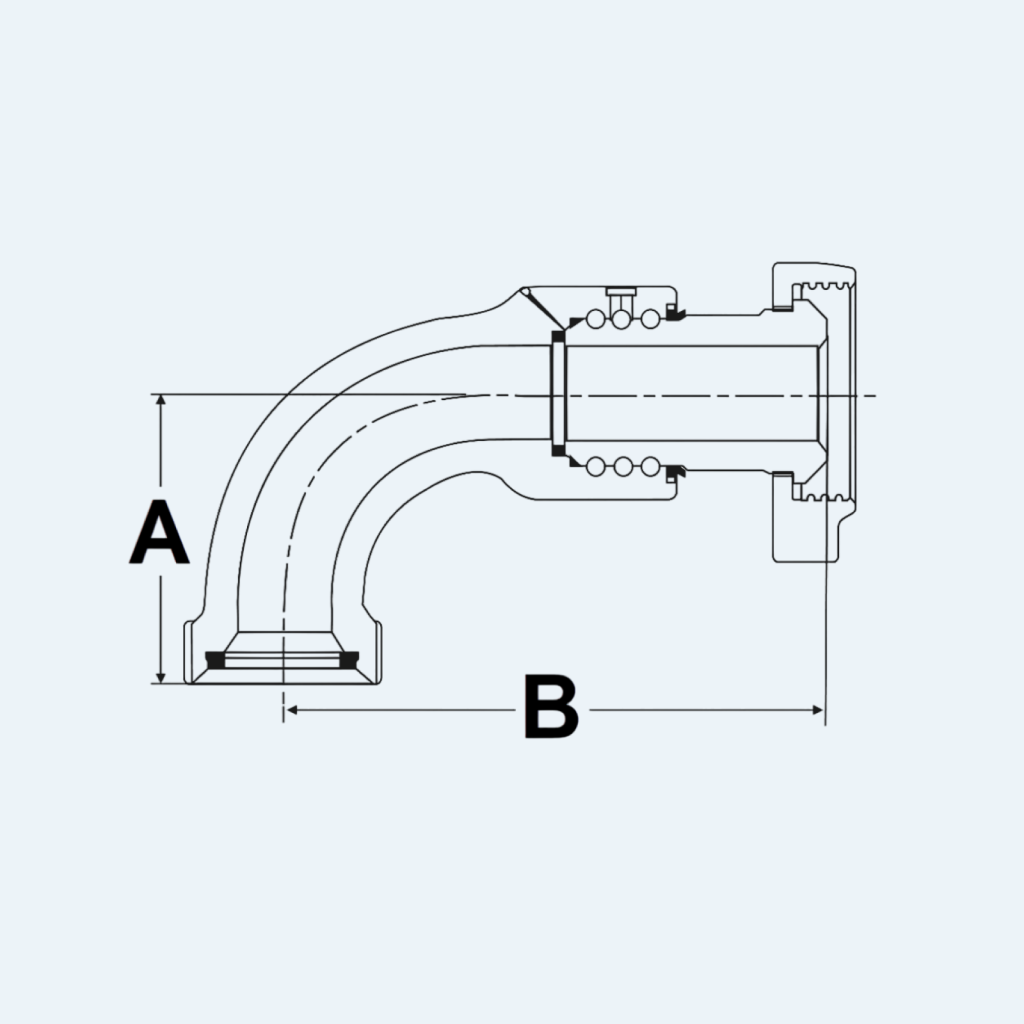

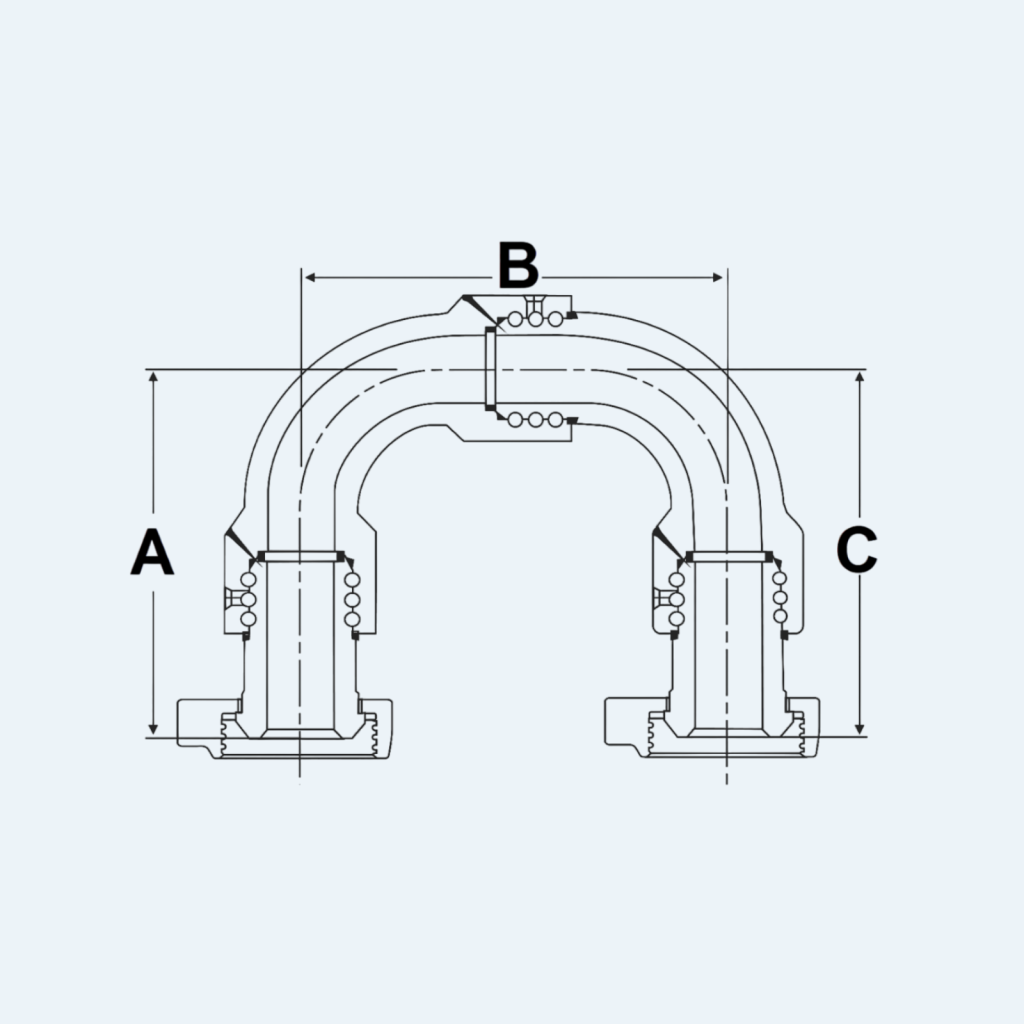

| Extra-long radius elbows are used in long sweep joints to improve the flow characteristics. | ||||||||||||
| Made especially to be used in high-pressure situations. | ||||||||||||
| Each Swivel Joint may be easily operated and fixed on-site. Kits for repairs are available. | ||||||||||||
| Three-race ball-bearing Swivel joints are appropriate for certain service conditions and load capacities. | ||||||||||||
| Each ball race is carburized for routine maintenance and features a snap ring design for H2S servicing. | ||||||||||||
| Both union and threaded ends are available. |
SYAN is known for delivering premium oil field products, guaranteeing dependability, and effectiveness for all your energy sector requirements.
